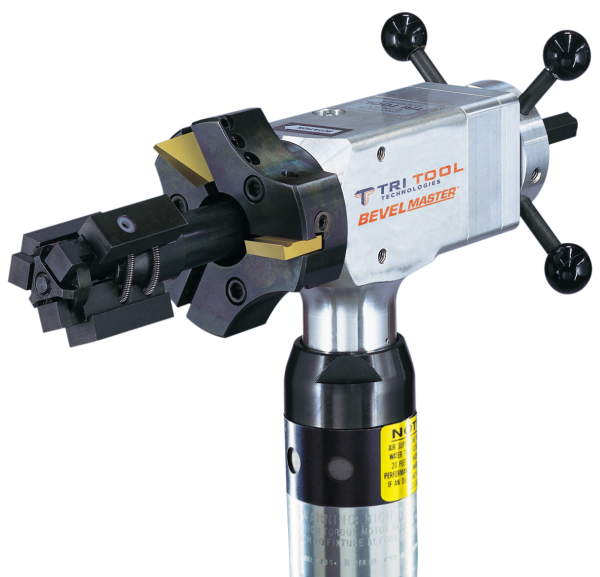

204-bevelmaster
204-bevelmaster
thumb_big_204b-demo-video-01
thumb_big_204b-demo-video-02
thumb_big_204b-demo-video-03
thumb_big_204b-demo-video-04

204B

Category:

MOTOR TYPE

  • 110V Electric Motor
  • Pneumatic / Air Motor

Pipe beveler features three (3) tool bit slot for facing, counterboring, and beveling, an inline feed, solid milled body with a heavy-duty gear set, and tapered roller bearings for reliability. A tool steel mandrel and durable hardened steel mounting blocks provide positive grip.

Pipe/Tube Size: *.610″ – 4.500″ (*15.5 mm – 114.3 mm)
Wall Thickness: **0.531″ (13.5 mm) max
Drive Options: Air
110V Electric
220V Electric
ADD TO QUOTE

Machine Package Includes:

  • Model 204B Sub. Assembly
  • Head Kit, 4″ Dia. w/cam
  • Air Motor Assembly
  • Mandrel Assembly
  • Jaw Block Set
  • Wrench Kit
  • Carrying Case
  • Operators Manual

Technical Specifications
Property Inches Metric
ID Mounting:
Mandrel, Reduced Diameter (option)
Mandrel, Reduced Diameter (option)
Standard Mandrel		 *.610″ – 1.000″
*1.000″ – 1.250″
1.250″ – 4.330″		 *(15.5 mm – 25.4 mm)
*(25.4 mm – 31.8 mm)
(31.8 mm – 110.0 mm)
OD Machining (max):
2.625″ Head (option)
4.000″ Head		 *2.625″
4.500″		 *(66.8 mm)
(114.3 mm)
Counterboring: 1.500″ – 4.330″ (38.1 mm – 110.2 mm)
ID Chamfering: 1.600″ – 4.190″ (40.6 mm – 106.4 mm)
Wall Thickness:
Air
Electric		 **.531″
**.250″		 **(13.5 mm)
**(6.4 mm)
Axial Feed Travel: 1.500″ (38.1 mm)
Feed Rate: (Per Revolution) .100″ (2.5 mm)
Weight: 18 lbs (8.2 kg)
Cutting Head Toolbit slots: 3
Rotating head diameter:
2.625″ head
4.000″ head		 *2.625″
4.000″		 *(66.8 mm)
(101.6 mm)
Height over motor: 19.880″ (505.0 mm)
Machine Width: 4.000″ (101.6 mm)
Length over machine: 16.420″ (417.1 mm)
Minimum Air Power requirement: 55 cfm
90 psi		 (30.0 L/s)
(621 kPa)
Minimum Electric Power: 5.25A@115V
@220V

*With optional accessory included

**For larger wall thickness, contact Tri Tool Inc. for heavier wall procedures

Documents

Operating Manual: 204B
Technical Specifications: 204B w/ Air Motor
Technical Specifications: 204B W/ Electric Motor

Optional Accessories
Property Inches Metric
Reduced Diameter Mandrel
Mandrel, Reduced Diameter:
Mandrel, Reduced Diameter:		 .610″ – 1.000″
1.000″ – 1.250″		 (15.5 mm – 25.4 mm)
(25.4 mm – 31.8 mm)
Wedgelock Head Kit:
2.625″ Head
4.000″ Head		 2.625″
4.000″		 (36.8 mm)
(50.8 mm)
Air Caddy (Filter Regulator Lubricator)
Flange Facer Kit
Elbow Mandrel Kit
Pointer Kit, Elbow Mandrel
Mandrel Assembly, Small Elbow
