SUREFIRE 8

Category: End Prep Beveling

MOTOR TYPE

110V Electric Motor
220V Electric Motor
Air / Pneumatic Drive

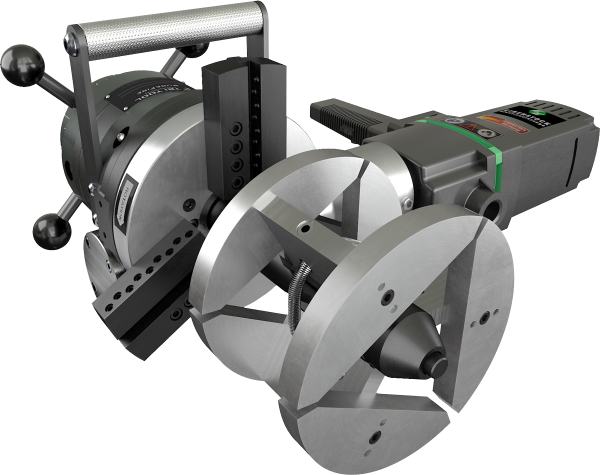

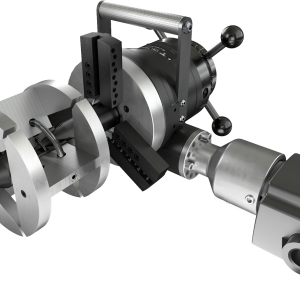

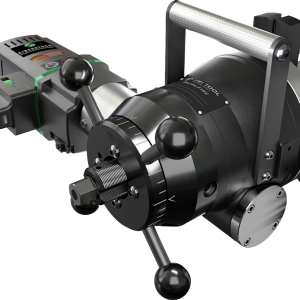

Pipe facer/beveler featuring Surefire quick change mounting pads for clean, square weld preps on thin wall pipe and tube. The through hardened mandrel, solid milled body with a heavy-duty gear set, and tapered roller bearings ensure rigidity and reliability. The machine is light weight,and has adjustable torque keys that prevent cutting vibrations producing smoother cuts.

Pipe/Tube Size:	*3″ thru 8″ pipe, SCH 5 and SCH 10
Wall Thickness:	**0.148″ (3.8 mm) max
Drive Options:	Air 115V Electric 230V Electric

Machine Package Includes:

Model Surefire 8 Sub. Assembly
Pneumatic or Electric Motor Assembly
Mandrel Assembly
Wrench Kit
Carrying Case
Operator’s Manual

Property	Inches	Metric
Technical Specifications
ID Mounting: Standard Mandrel	3″ – 8″ pipe, SCH 5 and SCH 10 3.260″ – 8.407″	(82.8 mm – 213.5 mm)
OD Machining (max):	8.630″	(219.2 mm)
ID Chamfering:	3.260″ – 8.407″	(82.8 mm – 213.5 mm)
Wall Thickness (max):	**.148″	**(3.8 mm)
Axial Feed Travel:	2.000″	(50.8 mm)
Feed Rate: (Per Revolution)	.083″	(2.1 mm)
Weight: Total w/o Mandrel Assembly	55 lbs 48 lbs	(25.2 kg) (21.8 kg)
Cutting Head Toolbit slots:	3
Rotating head diameter:	9.16″	(232.7 mm)
Height over motor:	25.44″	(646.2 mm)
Machine Width:	10.31″	(261.9 mm)
Length over machine	17.95″	(455.9 mm)
Minimum Air Power	85 CFM 90 PSI	(40.1 L/s) (621 kPa)
Minimum Electric Power	16.3A@115V-50/60Hz 8.2A@230V-50/60Hz
