Surefire 1.5

Category:

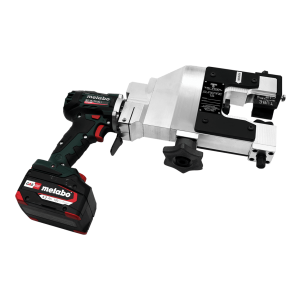

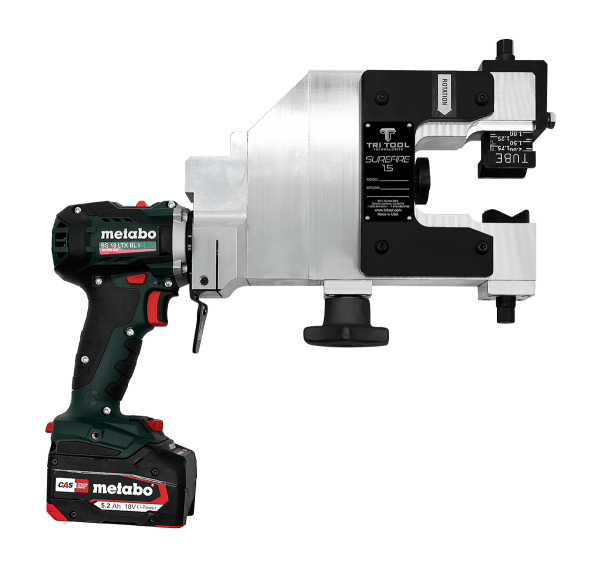

Tri Tool’s new Surefire 1.5 cordless pipe beveler gives you the freedom to work in the field and in situ without compromising performance or precision. This lightweight, battery-powered machine features small diameter culling heads which allow for rapid, accurate machining in tight spaces, making it perfect for boiler use in water-wall cutout windows and between boiler panels. Stiffening plates add ridigity to ensure smooth, accurate cuts, even on heavy wall pipe.

The Surefire 1.5 bevels and faces mild, chrome and stainless steels, as well as copper-nickel alloys and aluminum.

Pipe/Tube Size: *.250″ – 2.000″ (*6.4 mm – 50.8 mm)
Wall Thickness: **0.400″ (10.2 mm) max
Drive Options: Air
Cordless 18VDC with 110 Battery Charger
ADD TO QUOTE

 Machine Package Includes

  • Model Surefire 1.5 Sub-Assembly
  • 1.45″ (36.8mm) and 2.00″ (50.8mm) DIA Head Kit
  • Adjustable Saddle Kit, Full Range DIA Range = .250″ (6.4mm) to 2.000″ (50.8mm)
  • Cordless Electric Motor or Air Motor
  • Wrench Kit
  • Carrying Case
  • Operator’s Manual

Technical Specifications
Property Inches Metric
OD Mounting: *.250″ – 2.000″ *(6.4 mm – 50.8 mm)
Wall Thickness (max): **.400″ **(10.2 mm)
Axial Feed Travel: .750″ (19.1 mm)
Feed Rate: (Per Revolution) .036″ (0.9 mm)
Weight (Cordless Electric Motor): 17.2 lbs (7.8 kg)
Weight (Air Motor): 15 lbs (6.8 kg)
Cutting Head Toolbit slots: 2
Rotating head diameter: *1.450″
*2.000″
*(36.8 mm)
*(50.8 mm)
Height over motor: 16.950” (430.5 mm)
Machine Width: 1.450” (36.8 mm)
Length over motor 18.350″ (466.1 mm)
Minimum Air Power requirement: 31 cfm
90 psi
(14.6 L/s)
(621 kPa)
Minimum Electric Power @110V

*With optional accessory included

**For larger wall thickness, contact Tri Tool Inc. for heavier wall procedures


Documents

Brochure: Surefire 1.5
Operating Manual: Surefire 1.5
Technical Specifications: Surefire 1.5
Quick Start Guide

Tool Bits
Number Property Dimensions
99-4000 Facing 0.0° x .250″ Width
99-0944 Beveling 37.5° x .250″ width
