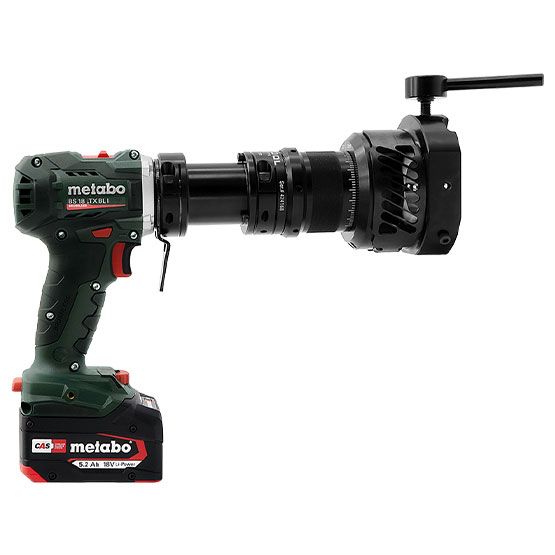

STS-2

Category: Tube Facing and Squaring

Tube OD Saddle Size

0.250″
0.375″
0.500″
0.750″
1.000″
1.250″
1.500″
2.000″

Lightweight, portable facing machine designed for weld preparation on autogenous welding. Uses an OD saddle clamping system for material holding and an in-line feed collar. Can accommodate standard or short perch lengths for tube lengths less than .250″.

Pipe/Tube Size:	0.188″ – 2.500″ (4.8 mm – 63.5 mm)
Wall Thickness:	0.200″ (5.1 mm)
Drive Options:	18V Electric 115V Electric 230V Electric 100V Electric

Machine Package Includes:

Model STS-2 Sub. Assembly
Integrated Guard
Motor Assembly
Wrench Kit
Carrying Case
Operators Manual

Property	Inches	Metric
Technical Specifications
OD Mounting:	*.188″ – 2.500″	*(4.8 mm – 63.5 mm)
Wall Thickness (max):	.200″	(5.1 mm)
Axial clamping length (min):	*.190″	*(4.8 mm)
Axial Feed Travel:	.200″	(5.1 mm)
Weight: 110V/220 Corded Cordless	11.7 lbs 10.3 lbs	(5.3 kg) (4.7 kg)
Cutting Head Toolbit slots:	2
Height over motor:	12.100”	(307.3 mm)
Machine Width:	4.000”	(101.6 mm)
Length over motor	13.700″	(348.0 mm)
Minimum Electric Power	7.2A@100V 50/60hz 9.6A@115V 50/60hz 5.7A@230V 50/60hz
