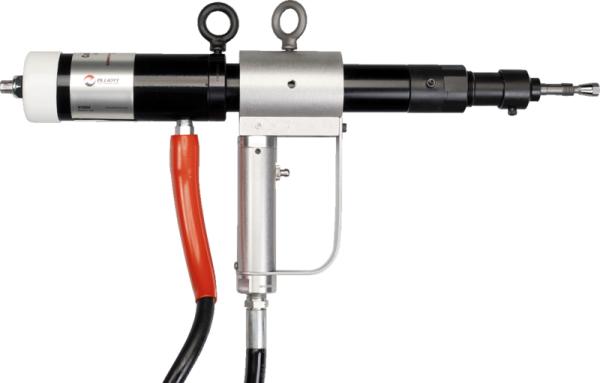

Collet Style Tube Tugger

The B10552-00 Collet Tube Puller is designed for fast and efficient tube removal in condensers, chiller, and other heat exchangers. With its 6 Ton pulling capacity, the Collet Tube Puller automatically grips, pulls, and releases the tube in a matter of seconds. The puller’s compact design allows access to confined work areas. Additionally, the 360º Positioning Handle enables access to those hard-to reach tubes that are near channel plates and water box conditions. The Collet Tube Puller can quickly and successfully pull over 100 tube stubs in less than an hour. To allow for even faster tube pulling, use Elliott’s Cyclgrip Semi-Continuous Tube Puller – the perfect partner for the Collet Tube Puller.

Tube OD Size Range: 0.625” to 1.000” (15.90 – 25.40mm)
Type: Tube Puller
Application: Condensers, chillers, or heat exchangers
Pulling Capacity: 6 Ton
Stroke: 3″ (76.00mm)
Pulling Stroke: 2.25″ (57.20mm)
Weight: 25lbs (11kg)
Retracted Length: 20.5″ (520.70mm)
Extended Length: 21.75″ (552.60mm)

TM-71 Collet Tube Puller

A Collet Style Tube Tugger Kit Includes:

B10552 Collet Style Tube Tugger Assembly
B10552D5-750 Collet Retainer for 5/8″ (15.9mm) and 3/4″ (19.1mm) ODs
B10552D7-750 Pull Rod for 5/8″ (15.9mm) and 3/4″ (19.1mm) ODs
B10552D5-1000 Collet Retainer for 7/8″ (22.2mm) and 1″ (25.4mm) ODs
B10552D7-1000 Pull Rod for 7/8″ (22.2mm) and 1″ (25.4mm) ODs
B10552D20 15ft (4.6m) Hydraulic Hose Assembly

Get The Job Done Quickly

Designed for fast and efficient tube removal in condensers, chillers, and other heat exchangers. The Collet Style Tube Tugger can quickly & successfully pull over 100 tube stubs in less than an hour.

Efficient

Quick stroke cylinder pulls tube stubs in less time.

Ergonomic

Lightweight pulling ram reduces operator fatigue.

Lower Cost

Wide gripping range decreases tooling expense.

360˚ Positioning

The 360-degree positioning handle enables access to those hard to reach tubes near channel plates and water boxes.
