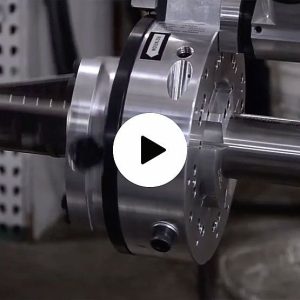

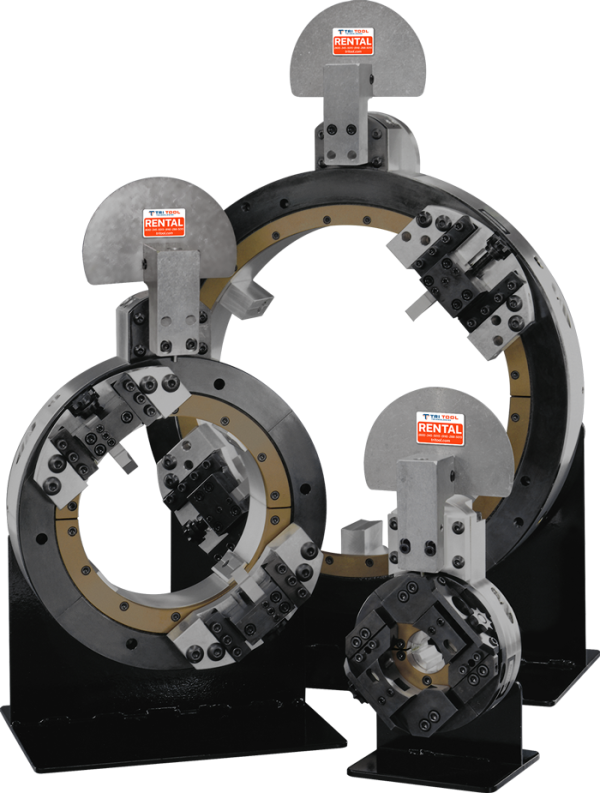

Machine Package Includes:
- Model 604SB sub assembly
- Motor asssembly
- Wrench Kit
- Case
- Operators Manual
| Technical Specifications |
| Property |
Inches |
Metric |
| OD Mounting: |
***2.375″ – 4.500″ |
(60.3 mm – 114.3 mm) |
| Wall Thickness (max): |
(See Required Accessory Tool Module) |
|
| Feed Rate: (Per Revolution) |
.003″ |
(.08 mm) |
Weight:
Basic Machine w/o motor |
29 lbs |
(13.1 kg) |
| Cutting Head Toolbit slots: |
2 |
|
Rotating head diameter:
1 Position:
2 Position: |
8.950″
10.950″ |
(227.3 mm)
(278.1 mm) |
| Main frame diameter: |
9.000″ |
(228.6 mm) |
| Machine Width: |
4.500″ |
(114.3 mm) |
Minimum Air Power requirement:
Standard Motor |
85 cfm – 90 psi |
(40 L/s) – (621 kPa) |
Minimum Electric Power requirement:
Standard Motor
HD Motor |
7.5 A@115V (25 – 60 Hz)
15.0A@115V (25 – 60 Hz)
8.0A@230V (25 – 60 Hz) |
|
| Minimum Hydraulic Power requirement: |
3 gpm – 15 gpm @ 1500 psi
15 gpm – 20 gpm @ 1000 psi |
(.19 L/s – .94 L/s) @ 10342 kPa
(.94 L/s – 1.265 L/s) @ 6894 kPa |
|
|
|
*With optional accessory included
**For larger wall thickness, contact Tri Tool Inc. for heavier wall procedures
***For tube sizes, contact Tri Tool Inc.
Operating Manual – 604SB
| Tool Bits |
| Property |
Angle |
Low Profile Tool Block |
Extended Tool Block |
| Sever and Double Bevel |
37.5° |
99-1642 & 99-1643
99-0987 & 99-0986 |
|
| L.H. Single Bevel and Sever |
37.5° |
99-1646 & 99-1647
99-1264 & 1265 |
99-99-1256 & 99-1257 |
| R.H. Single Bevel and Sever |
37.5° |
99-1644 & 99-1645
99-1266 & 99-1267 |
99-1258 & 99-1259 |
| L.H. Sever |
|
99-1638 / 99-1639
99-1596 / 99-1595 |
99-0502 / 99-0501 |
| R.H. Sever |
|
99-1638 / 99-1639
99-1596 / 99-1595 |
99-0502 / 99-0501 |
| Socket Weld Removal Tool Holder |
|
99-1600 |
99-1600 |
| Optional Accessories |
| Property |
Inches |
Metric |
| Light Air Motor |
1.5 HP |
|
| Heavy Duty Air Motor |
3.0 HP |
|
| Light Duty Electric Motor |
110V |
|
| Heavy Duty Electric Motor |
115V or 230V |
|
| Hydraulic Motor |
|
|
| Variable Voltage Transformer |
|
|
| Counterbore Module Kit – 2 |
|
|
| Counterbore Module Kit – 3 |
Used with HD Tool Blocks |
|
| HD Tool Module Kit |
|
|
| Carbide Sever Kit |
Sandvik
Iscar |
|
| Reverse Drive Housing |
|
|
| Full Support Pads |
|
|
| Repair Kit |
|
|
| Lathe Stand Kit |
|
|
| .001″ Feed module |
|
|
| Carrying Case |
|
|
| Roller Cutter |
|
|
| Air Caddy (Filter Regulator Lubricator) |
|
|
| Servo Motor |
|
|
