Machine Package Includes:

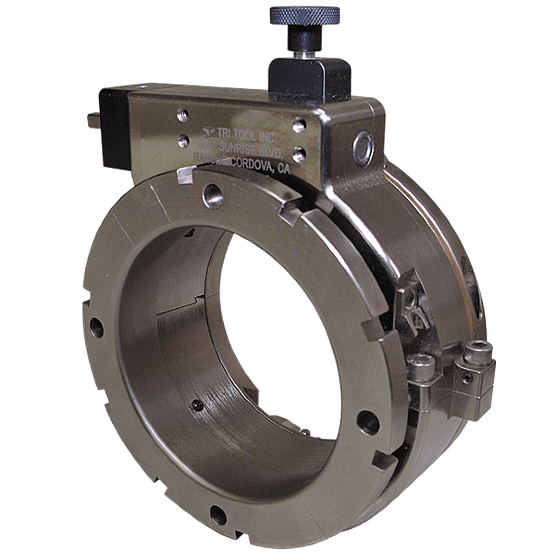

- Model 603.5SBCM sub assembly
- Tripper Pin removal kit
- 18″ extension whip
- Motor asssembly
- Wrench Kit
- Case
- Operators Manual
| Technical Specifications |
| Property |
Inches |
Metric |
| OD Mounting: |
***2.875″ – 4.000″ |
***(73.0 mm – 101.6 mm) |
Wall Thickness:
Severing with standard procedures
Severing with special procedures
Severing and single beveling
Severing and double beveling |
**.250″
**.358″
**.250
**.188 |
**(6.4 mm)
**(9.1 mm)
**(6.4 mm)
**(4.8 mm) |
| Feed Rate: (Per Revolution) |
.003″ |
(.08 mm) |
| Weight: |
9 lbs |
(4.0 kg) |
| Cutting Head Toolbit slots: |
2 |
|
| Rotating head diameter: |
6.230″ |
(158.3 mm) |
| Main frame diameter: |
6.030″ |
(153.2 mm) |
| Machine Width: |
2.870″ |
(72.9 mm) |
| Minimum Air Power requirement: |
32 cfm
90 psi |
(15.1 L/s)
(621 kPa) |
| Flexible Drive Shaft |
18.000″ |
(457.2 mm) |
|
|
|
*With optional accessory included
**For larger wall thickness, contact Tri Tool Inc. for heavier wall procedures
***For tube sizes, contact Tri Tool Inc.
Operating Manual – 603.5SBCM W/ Air Motor
Operating Manual – 603.5SBCM W/ Cordless Motor
Technical Specification – 603.5SBCM W/ Air Motor
| Tool Bits |
| Property |
Degree |
Part Number |
| Sever |
|
99-5943C4
99-7986C4 |
| Sever Lead |
|
99-8988C4 |
| *Double Bevel |
45.0° |
99-7008C4 |
| Sever Trail |
|
99-8989C4 |
| Sever / Bevel |
45.0° |
99-5941C4
99-7985C4 |
*Double Bevel Requires 33-2930 Screw, Cap, #8-32 X 5/8 SS
| Optional Accessories |
| Property |
Inches |
Metric |
| Auto-Disengage Tripper Module Kit |
|
|
| Air Caddy (Filter Regulator Lubricator) |
|
|
