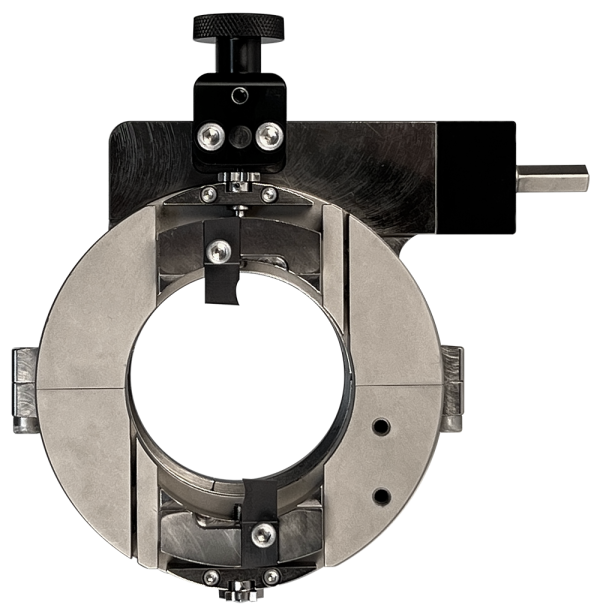

602SBCM

These low profile clamshells are split-frame lathes that sever and bevel in-line tube and pipe. The lathes split into two halves and lock all moving components for secure ease of handling and mounting. The collet style clamping self-centers and does not distort the work piece. It can be configured for clean-room use (No Lead) and are protected by tough Nickel plating that makes them easy to clean and decontaminate.

Pipe/Tube Size:	***1.315″ – 2.375″ (33.4 mm – 60.3 mm)
Wall Thickness:	**0.250″ (6.4 mm)
Drive Options:	Air 18V Electric, Cordless

Machine Package Includes:

Model 602SBCM sub assembly
Tripper Pin removal kit
18″ extension whip
Motor asssembly
Wrench Kit
Case
Operators Manual

Property	Inches	Metric
Technical Specifications
OD Mounting:	***1.315″ – 2.375″	***(33.4 mm – 60.3 mm)
Wall Thickness: Severing with standard procedures Severing with special procedures Severing and single beveling Severing and double beveling	.250″ .358″ .250 .188	(6.4 mm) (9.1 mm) (6.4 mm) (4.8 mm)
Feed Rate: (Per Revolution)	.003″	(.08 mm)
Weight:	6 lbs	(2.7 kg)
Cutting Head Toolbit slots:	2
Rotating head diameter:	4.610″	(117.1 mm)
Main frame diameter:	4.400″	(111.8 mm)
Machine Width:	2.340″	(59.4 mm)
Minimum Air Power requirement:	32 cfm 90 psi	(15.1 L/s) (621 kPa)
Flexible Drive Shaft	18.000″	(457.2 mm)
Minimum Electric Power:	@115V @220V

*With optional accessory included

**For larger wall thickness, contact Tri Tool Inc. for heavier wall procedures

***For tube sizes, contact Tri Tool Inc.

Documents

Operating Manual – 602SBCM W/ Air Motor
Operating Manual – 602SBCM W/ Cordless Motor
Technical Specification – 602SBCM W/ Air Motor

Property	Degree	Part Number
Tool Bits
Sever Lead		99-5941C4
*Double Bevel Use with 99-5941	37.5°	99-5942C4
Sever Trail Use with 99-5941		99-5942C4
Double Bevel Use with 99-5941	42.5° 45.0° 47.5°	99-6003C4 99-7008C4 99-6004C4
L.H. Single Bevel Use with 99-5941	42.5° 45.0° 47.5°	99-5999C4 99-7010C4 99-6000C4
R.H. Single Bevel Use with 99-5941	33.5° 37.5° 42.5° 45.0° 47.5°	99-6337C4 99-5990C4 99-6001C4 99-7009C4 99-6002C4
Socket Weld Inside		99-6340C4
Socket Weld Outside		99-6341C4
R.H. ‘J’ Bevel Use with 99-5941	30.0°	99-6338C4
Sever Trail Use with 99-5941		99-6357C4

*Double Bevel Requires 33-2930 Screw, Cap, #8-32 X 5/8 SS

Property	Inches	Metric
Optional Accessories
Socket Weld Removal Tool Module Kit
Auto-Disengage Tripper Module Kit
Roller Cutter Wheel Assembly
Air Caddy (Filter Regulator Lubricator)
