Machine Package Includes:

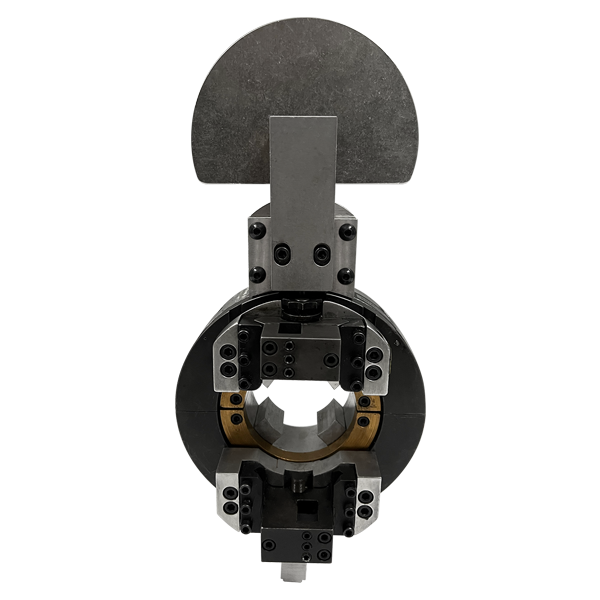

- Model 602.5SBM sub assembly
- Motor asssembly
- Wrench Kit
- Case
- Operators Manual
| Technical Specifications |
| Property |
Inches |
Metric |
| OD Mounting: |
***1.315″ – 3.000″ |
|
Wall Thickness:
Severing with standard procedures
Severing with special procedures
Severing and single beveling
Severing and double beveling |
**.630″
**1.250″
**.630″
**.400″ |
(16.0 mm)
(31.8 mm)
(16.0 mm)
(10.2 mm) |
| Feed Rate: (Per Revolution) |
.003″ |
(.08 mm) |
Weight:
Machine |
16.4 lbs |
(7.5 kg) |
| Cutting Head Toolbit slots: |
2 |
|
Rotating head diameter:
Low Profile tool module
Standard Profile tool module |
6.950″
6.870″ |
(176.5 mm)
(134.5 mm) |
| Main frame diameter: |
6.870″ |
(176.5 mm) |
| Machine Width: |
3.500″ |
(88.9 mm) |
| Minimum Air Power requirement: |
55 cfm
90 psi |
(26 L/s)
(621 kPa) |
|
|
|
*With optional accessory included
**For larger wall thickness, contact Tri Tool Inc. for heavier wall procedures
***For tube sizes, contact Tri Tool Inc.
Operating Manual – 602.5SBM
Technical Specification – 602.5SBM W/ Air and Electric Motor
| Tool Bits |
| Property |
|
Low Profile |
Standard |
| Sever and Double Bevel |
37.5° |
99-1952 & 99-1953 |
99-1632 & 99-1633
99-0987 & 99-0986 |
|
L.H. Single Bevel
and Sever |
37.5° |
99-1956 & 99-1957 |
99-1636 & 99-1637
99-1264 & 99-1265 |
R.H. Single Bevel
and Sever |
37.5° |
99-1954 &99-1955 |
99-1634 & 99-1635
99-1266 & 99-1267 |
| L.H. Sever |
|
99-1948 / 99-1949 |
99-1628 / 99-1629
99-1596 / 99-1595 |
| R.H. Sever |
|
99-1950 / 99-1951 |
99-1630 / 99-1631
99-1597 / 99-1598 |
Socket Weld Removal
Tool Holder |
|
99-2148 |
99-1600 / 99-1853 |
| Optional Accessories |
| Property |
Inch |
Metric |
| Low Profile Tool Module |
|
|
| Standard Tool Module |
|
|
| Socket Head Removal Kit |
|
|
| .001″ Feed Kit |
|
|
| Roller Cutter |
|
|
| Counterbore Module Kit |
|
|
| Lathe Stand Kit |
|
|
| Variable Voltage Transformer |
|
|
| Air Caddy (Filter Regulator Lubricator) |
|
|
