Machine Package Includes:

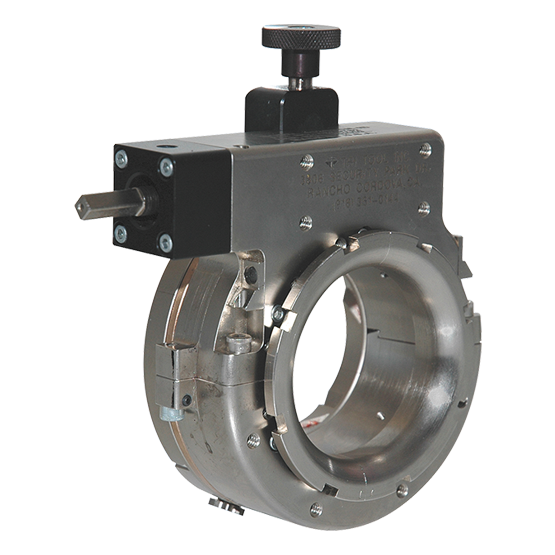

- Model 601SBCM sub assembly
- Tripper Pin removal kit
- 18″ extension whip
- Motor asssembly
- Wrench Kit
- Case
- Operators Manual
| Technical Specifications |
| Property |
Inches |
Metric |
| OD Mounting: |
.405″ – 1.315″ |
(10.3 mm)
(33.4 mm) |
Wall Thickness:
Severing with standard procedures
Severing with special procedures
Severing and single beveling
Severing and double beveling |
**.250″
**.358″
**.250
**.188 |
**(6.4 mm)
**(9.1 mm)
**(6.4 mm)
**(4.8 mm) |
| Feed Rate: (Per Revolution) |
.003″ |
(.08 mm) |
| Weight: |
4 lbs |
(1.8 kg) |
| Cutting Head Toolbit slots: |
2 |
|
| Rotating head diameter: |
3.450″ |
(87.6 mm) |
| Main frame diameter: |
3.250″ |
(82.6 mm) |
| Machine Width: |
2.330″ |
(59.2 mm) |
| Minimum Air Power requirement: |
32 cfm
90 psi |
(15.1 L/s)
(621 kPa) |
| Flexible Drive Shaft |
18.000″ |
(457.2 mm) |
| Minimum Electric Power: |
@115V
@220V |
|
|
|
|
*With optional accessory included
**For larger wall thickness, contact Tri Tool Inc. for heavier wall procedures
***For tube sizes, contact Tri Tool Inc.
Operating Manual – 601SBCM W/ Air Motor
Operating Manual – 601SBCM W/ Cordless Motor
Technical Specification – 601SBCM W/ Air Motor
| Tool Bits |
| Property |
Degree |
Part Number |
| Sever Lead |
|
99-5941C4 |
*Double Bevel
Use with 99-5941 |
37.5° |
99-5942C4 |
Sever Trail
Use with 99-5941 |
|
99-5942C4 |
Double Bevel
Use with 99-5941 |
42.5°
45.0°
47.5° |
99-6003C4
99-7008C4
99-6004C4 |
L.H. Single Bevel
Use with 99-5941 |
42.5°
45.0°
47.5° |
99-5999C4
99-7010C4
99-6000C4 |
R.H. Single Bevel
Use with 99-5941 |
33.5°
37.5°
42.5°
45.0°
47.5° |
99-6337C4
99-5990C4
99-6001C4
99-7009C4
99-6002C4 |
| Socket Weld Inside |
|
99-6340C4 |
| Socket Weld Outside |
|
99-6341C4 |
R.H. ‘J’ Bevel
Use with 99-5941 |
30.0° |
99-6338C4 |
Sever Trail
Use with 99-5941 |
|
99-6357C4 |
*Double Bevel Requires 33-2930 Screw, Cap, #8-32 X 5/8 SS
| Optional Accessories |
| Property |
Inches |
Metric |
| Socket Weld Removal Tool Module Kit |
|
|
| Auto-Disengage Tripper Module Kit |
|
|
| Roller Cutter Wheel Assembly |
|
|
| Air Caddy (Filter Regulator Lubricator) |
|
|
