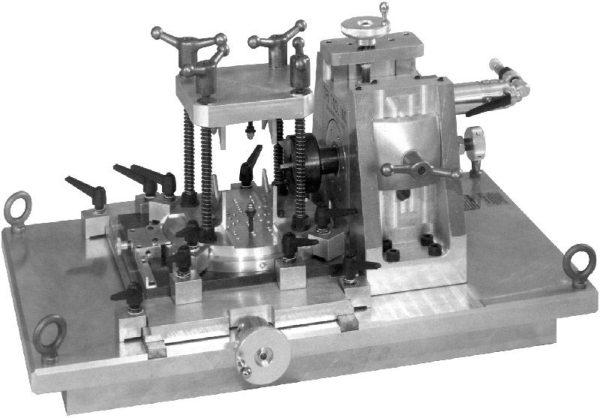

Machine Package Includes:
- Model 536 Fitting Sub. Assembly
- Small and Large Centering head
- Saddle Kit
- Air Motor Assembly
- Wrench Kit
- Operators Manual
| Technical Specifications |
| Property |
Inches |
Metric |
| OD Mounting: |
*1.000″ – 6.000″ |
*(25.4 mm – 152.4 mm) |
| Wall Thickness (max): |
.562″ |
(14.3 mm) |
Turn Table OD:
Small Turntable
Large Turntable |
1.000″ – 3.500″
4.000″ – 6.000″ |
(25.4 mm – 88.9 mm)
(101.4 mm – 152.4 mm) |
Turntable Rotation:
Increments:
Marking
Set detents
Total |
1°
15°
45°
360° |
|
| Axial Feed Travel: |
3.000″ |
(76.2 mm) |
| Feed Rate: (Per Revolution) |
.063″ |
(1.6 mm) |
| Weight: |
460 lbs |
(209.0 kg) |
| Cutting Head Toolbit slots: |
3 |
|
| Height over motor: |
18.900” |
(481.0 mm) |
| Machine Width: |
30.500″ |
(775.0 mm) |
| Length over motor |
53.000” |
(1348.0 mm) |
| Minimum Air Power requirement: |
90 cfm
90 psi |
(45.2 L/s)
(621 kPa) |
|
|
|
*With optional accessory Included
**For larger wall thickness, contact Tri Tool Inc. for heavier wall procedures
Operating Manual: 536 Fitting Maching w/ Z-Miter
| Optional Accessories |
| Property |
Inches |
Metric |
| Dial Indicator Kit |
|
|
| Air Caddy (Filter Regulator Lubricator) |
|
|
