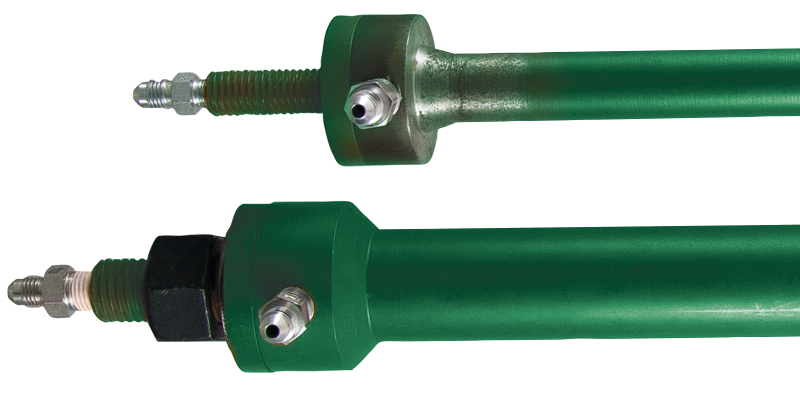

Hydrodynamic Isolation Tool

Save Time & Money

Fast and simple installation and testing
Significantly reduce maintenance project timelines
User-friendly and require minimal training

Complete & Effective Isolation

Heavy-Duty Construction
Corrosion resistant plated carbon steel with neoprene seal elements
Hydrodynamic capability for heat treating
Ensures a seamless and effectively cooled surface without complications

Versatile

Wide range of available sizes
Custom sizes and special configurations available
Isolation and Test, temperature controlled
Ensures a vapour-free environment for conducting hot work operations

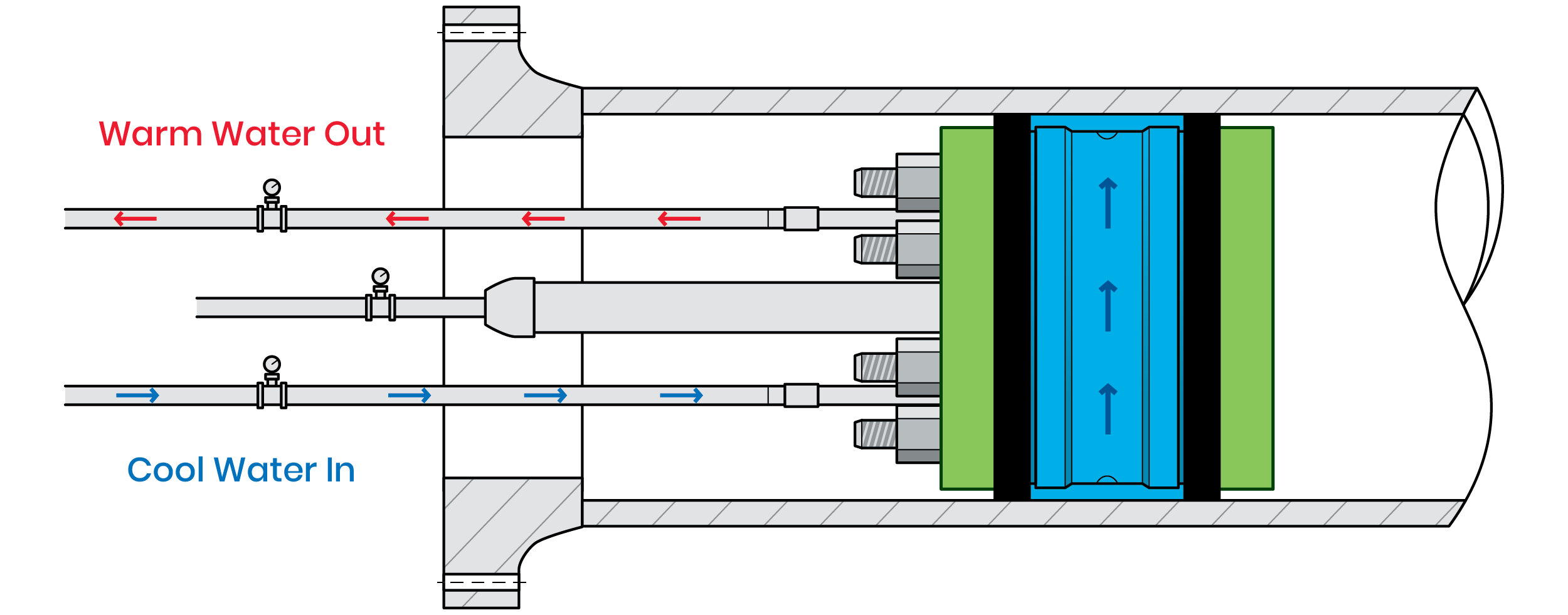

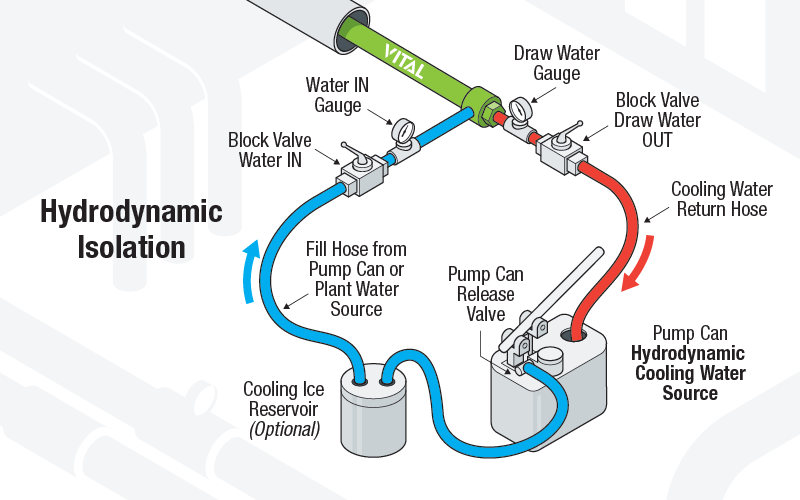

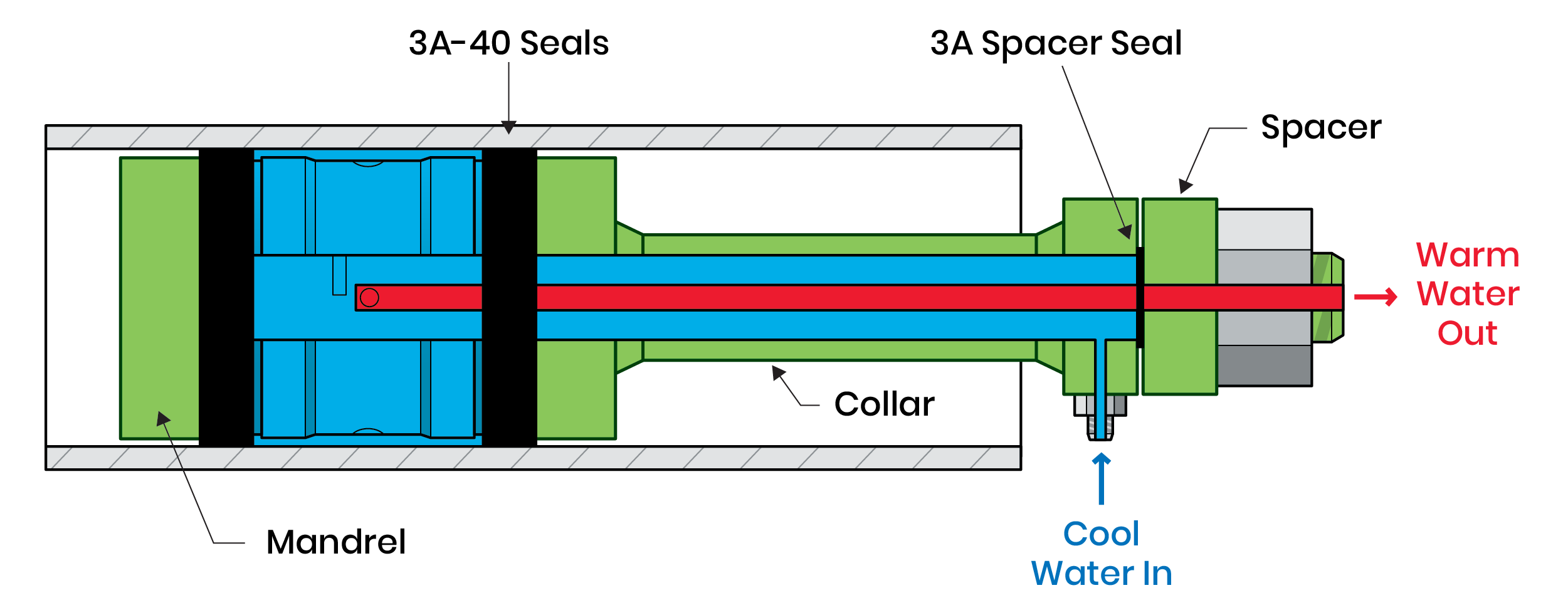

Hydrodynamic Isolation

The purpose of a Hydrodynamic Tool is to provide a constant cycle of cooling water to the Isolation Tool during Post Weld Heat Treatment (PWHT) operations, while still maintaining positive pressure between the seals to keep a constant hydrostatic barrier in place.

Provides a constant cycle of cooling water
Dissipate the heat from welding, Post Weld, or back-out Heat Treatment (PWHT) operation
Keep a constant hydrostatic barrier in place
