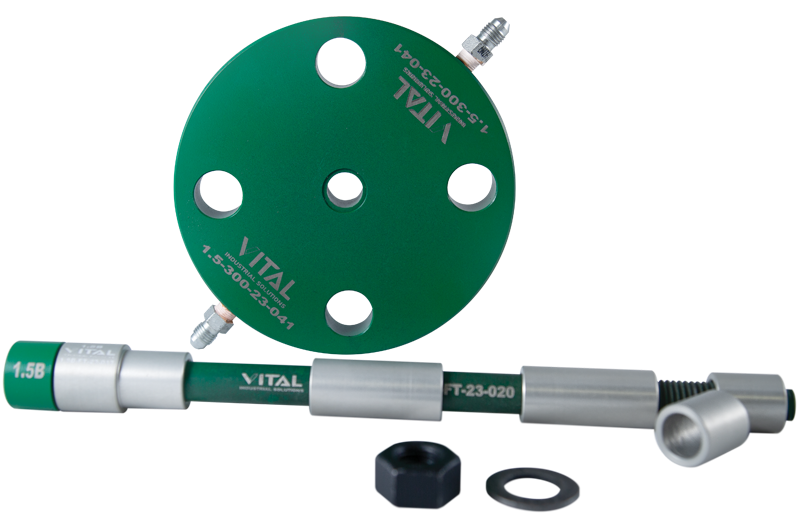

Flange Weld Isolation Tool

Flange Weld
Isolation Tool

Reduce the expense and downtime delays by eliminating the need for hydrotesting.

Save Time & Money

Fast and simple installation and testing
Use with a range of pipe schedules
Test only the weld to the flange not the whole pipeline
Eliminate need for traditional hydrotesting

Patented Technology

Lightest weight on the market
Tests various types of flange weld connections, including weld-neck, slip-on, and lap-joint
Minimal water use, less handling and waste

Features

Self-centering and reliable
Ability to adjust length of testing area by moving spacers
Easy to use - Minimal required training

Reduce Downtime

Fast and simple installation and testing
Tests various types of flange weld connections, including weld-neck, slip-on, and lap-joint
Suitable for use with a range of pipe schedules
Minimal water use, less handling and waste
Eliminates the need for a full system test
Minimal Training
Time Saving
Cost Saving
Adjustable spades to modify testing area

WHY YOU NEED VITAL'S FLANGE WELD TEST TOOL

Self-Centering

Vital’s self-centring mechanism creates an operator-friendly experience and a consistent leak-free seal.

Minimal training as no specific bolt pattern is required
Cost-effective replaceable seals are schedule-specific

Fewer Tools to Manage

Compared to its competitors, Vital tools allow you to use fewer tools as all tools are Combination Isolation and Test Tools that accommodate multi-schedules via swapping out seals. The slim and lightweight design means no crane is required typically.

Double Block and Bleed Technology

Double block and bleed technology assures vapour-free isolation for hot work. Vapour is vented to a safe area, eliminating back pressure build-up. Achieve a positive hydrostatic barrier verified by pressure monitoring.
